WS-STS1-12 security high-precision radar adopts modern microwave technology and digital signal processing technology, which can complete the accurate positioning of moving objects in the coverage area, output their relative position, moving direction and speed and other information, provide early warning function, and effectively improve the ability of prevention and handling emergencies, to provide all-time and all-weather security for the surrounding environment of important facilities (border, airport, oil field, mine, river, lake, etc.).

Features

-- Using 24 GHz MMIC technology with superior performance;
-- Digital phased array radar based on DBF technology;

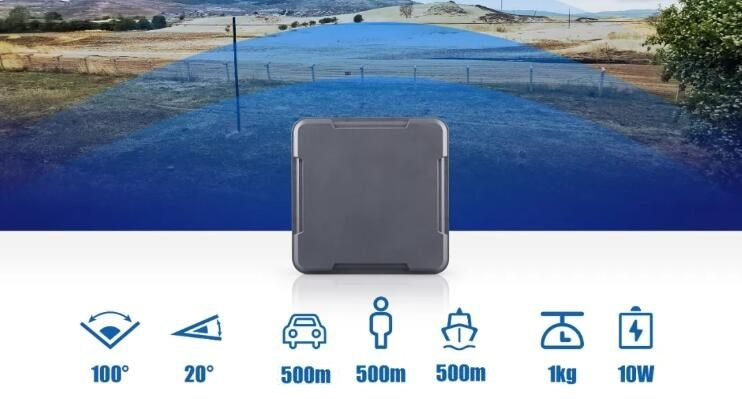

-- Pedestrian and vehicle detection distance ≥ 500m, ship ≥ 1000m, observation angle ≥ 100 °;
-- Relative position, moving direction and speed of the target can be reported;
-- With multiple targets detection and motion trajectory tracking respectively;
-- Easy to install and upgrade;
-- With strong adaptability to the environment and no interference by light, dust, rain and snow.

Application

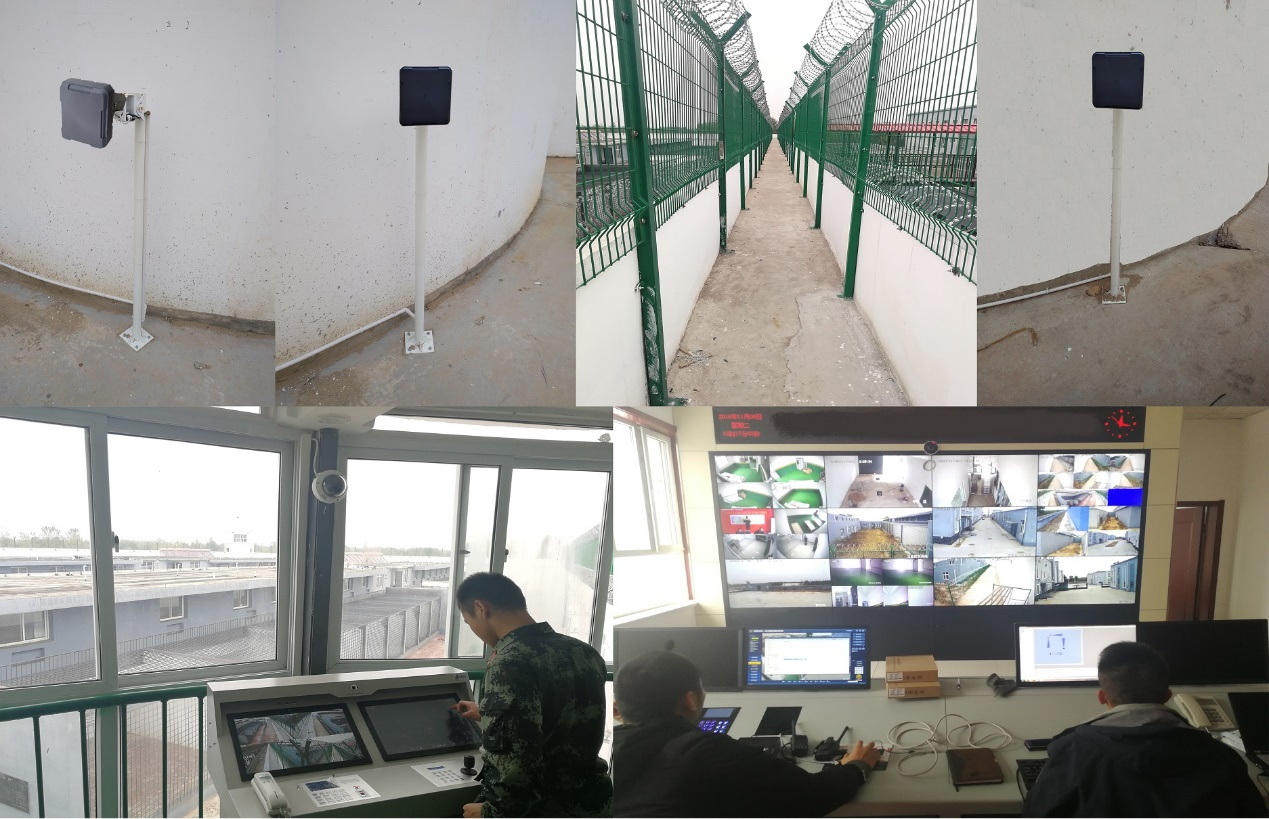

WS-STS1-12 can be widely used in the protection of key core areas. When suspicious personnel enter the protection area, the product can timely monitor and trigger an alarm. The product has a wide range of coverage, and can accurately locate. It can further cooperate with the camera to confirm the identity of the target and enhance the security alert level.

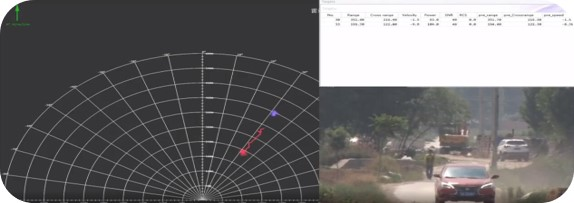

Software

Specification
