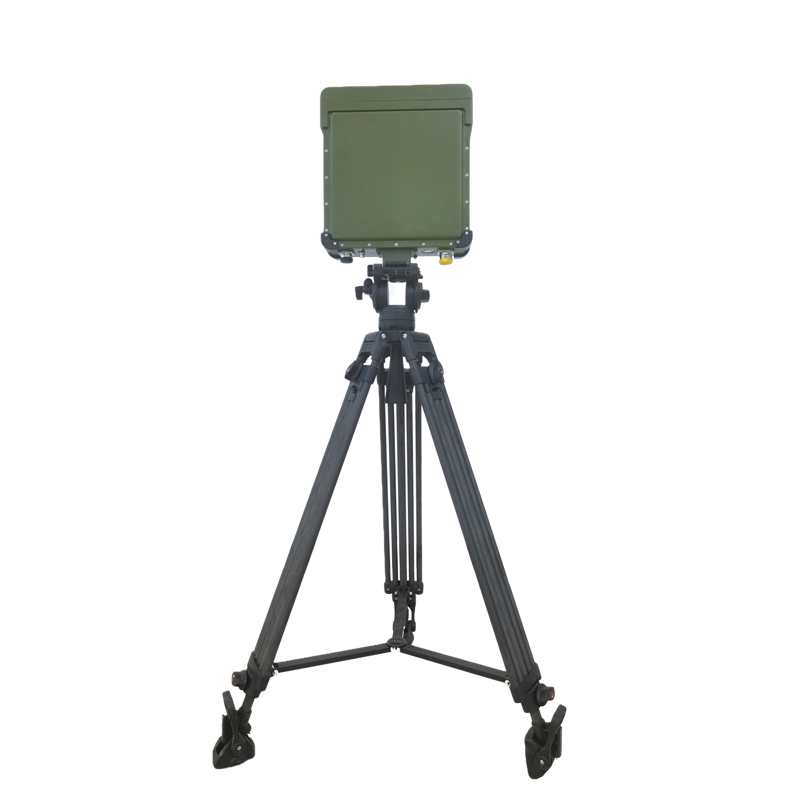

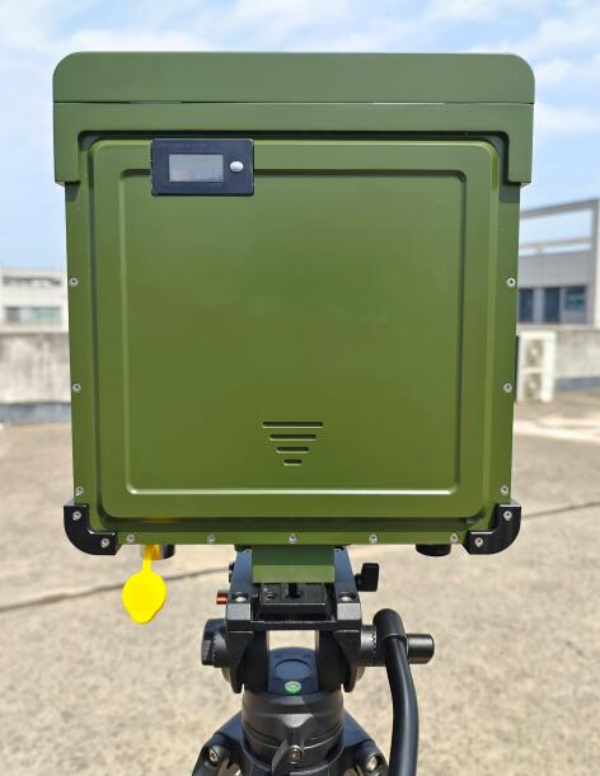

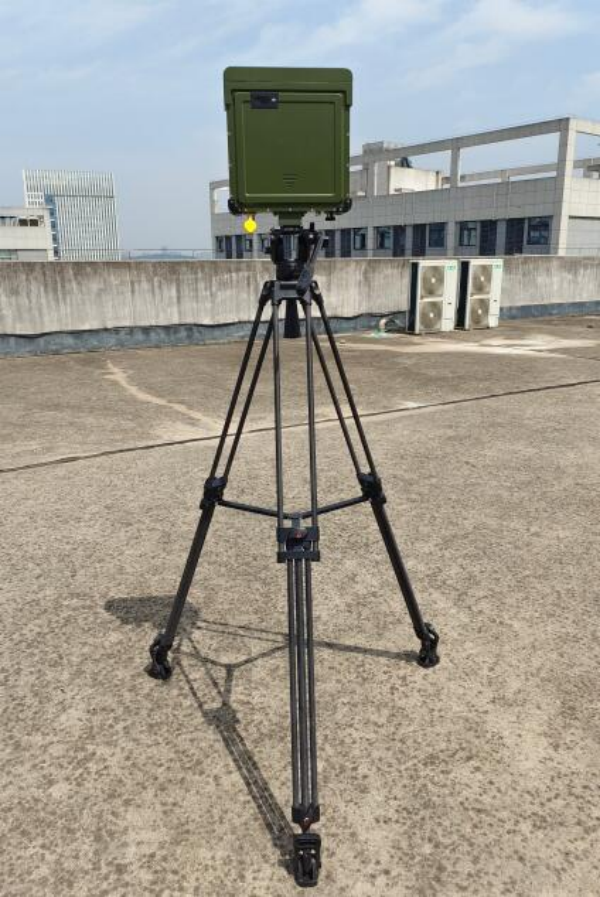

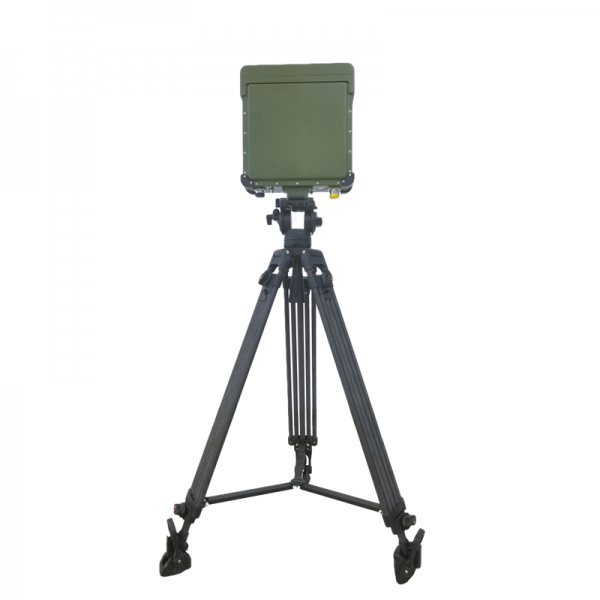

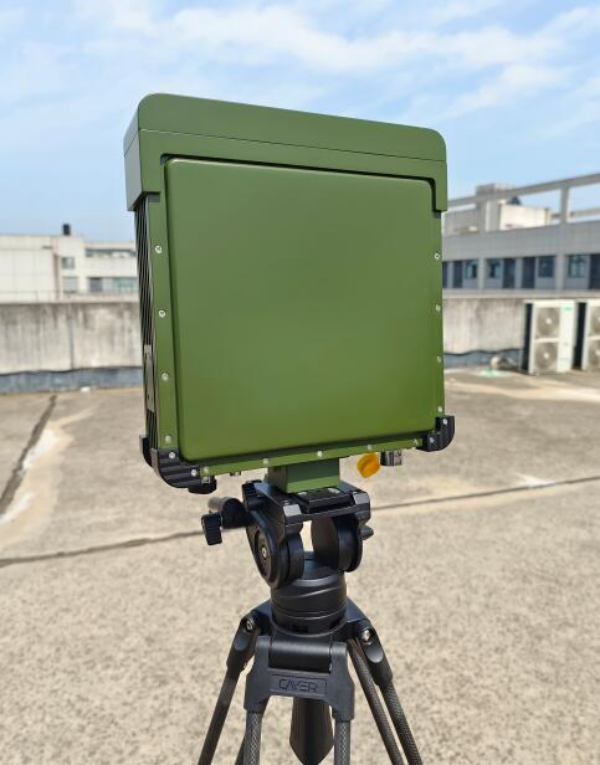

GCA-501P-1C is portable backpack type radar. It adopts modular design, with simple structure, convenient installation, no wiring, simple and fast erection. The radar outputs target position and characteristic information to the supporting display and control system through wireless transmission module. The terminal software is simple to operate, easy to learn and easy to use.
Features

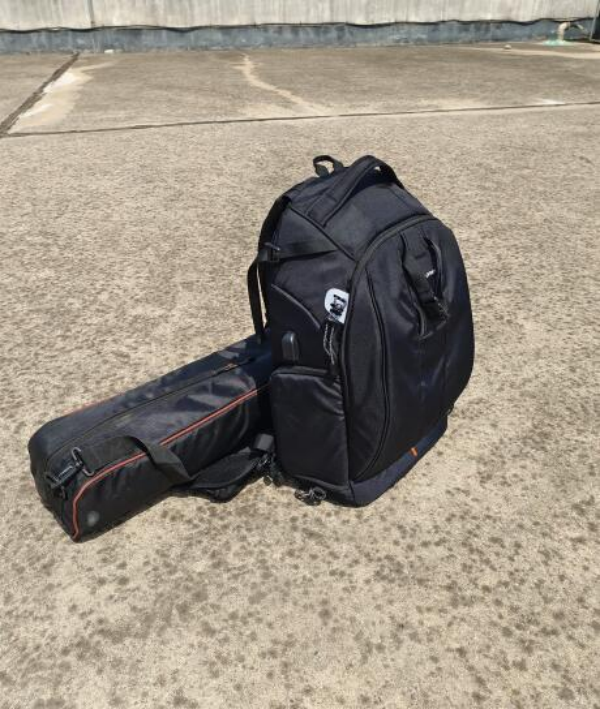

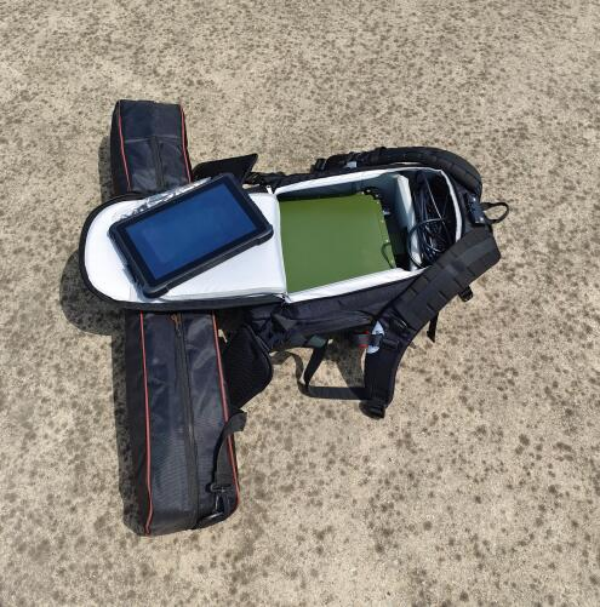

· Backpack portable design
· High data rate and high positioning accuracy
· Built-in GPS Positioning directional antenna
· All-weather adaptability
· Tablet with Window 10
· Rechargeable battery
Application
Checkpoint, prison, reservoir, perimeter security, oil field, etc.
Specification
|
Item |
Specification |
|
Working mode |
Phased array+ Pulse Doppler |
|
Working frequency |
C band (5.5-5.8GHz) |
|
Detection range |
1-1.5km (Pedestrians) 3km (Vehicles/Ship) 5km (Vessel) |
|
Minimum detection range |
≤100m |
|
Azimuth coverage |
Single panel：90° |
|
Elevation coverage |
18° |
|
Distance accuracy |
≤10m |
|
Azimuth Accuracy |
≤1.0° |
|
Target detection speed |
0.5m/s-30m/s |
|
Speed precision |
≤0.2m/s (Radial velocity) |
|
Data rate |
≤1s/Frame |
|
Weight |
≤18kg |
|
Endurance (Normal temperature) |
Terminal endurance ≥5h Radar array endurance ≥5h |
|
Interface |
Wireless transmission (open 1km) RJ45 network port transmission (with 3M network cable) |
|
Dimension |
490mm x 340mmx 240mm |
|
Working temperature |
Operating temperature: - 20℃~ + 55℃; Storage temperature: - 30℃~ + 65℃; Rain proof, dust-proof and sand control measures shall be taken; With moisture-proof, mildew proof and other measures; |
