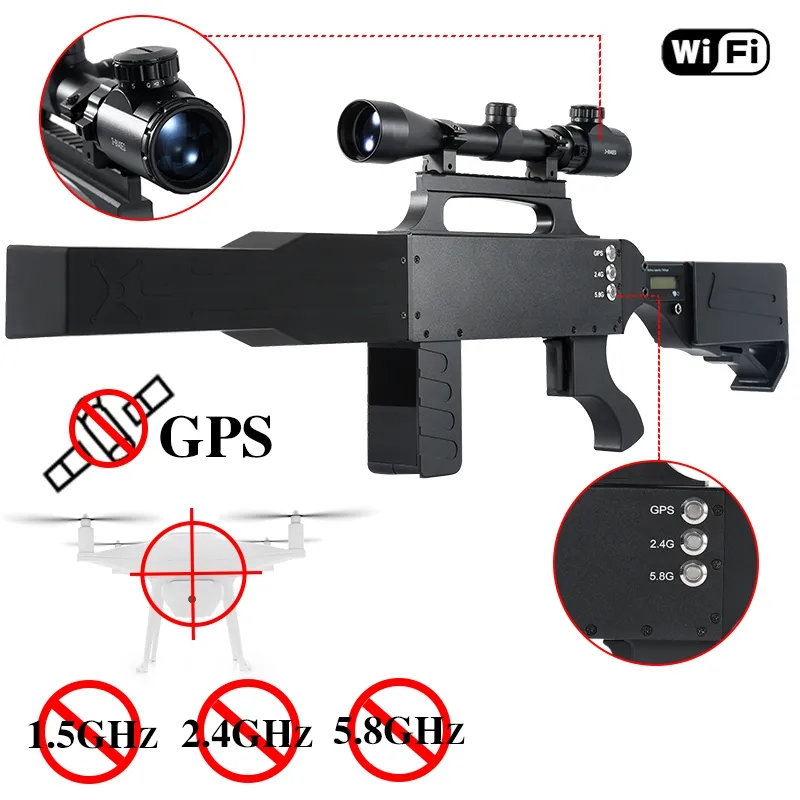

WS-03 Pro adopts the rifle design and is easy to operate. The device has a built-in large-capacity battery, with effective jamming range up to 1km -1.5km.

Features

-- With light-weight less than 5 kilograms

-- 1.5km effective distance

-- Standard configuration: Two replaceable batteries

-- Two mode options forcing drones to land or return to its point of origin

Jammer Specifications

-- Voltage: 24V

-- Runtime: 35-40 min (Continuous working)

-- Max distance: Up to 1.5km

-- Body Weight: 4.7KG (Including Battery)

-- Body Dimension: L860xW60xH300mm

Jammer frequencies

1560-1620MHz/10Wattts;

2400-2483MHz/10Wattts;

5725-5850MHz/10Wattts;

5150-5350MHz/10Wattts;

Antenna Specifications

Antenna Gain 9dB V-Plane: 40 degrees

Environment Operating temperature: -10℃ to + 50℃

Battery Specifications

Replaceable Lithium Battery 24V / 5Ah x 2 Pieces

Operating Temperature: -10℃ to + 50℃

Package Information

Dimension: 960mm x 360mm x180mm

Gross weight: 13 kg
