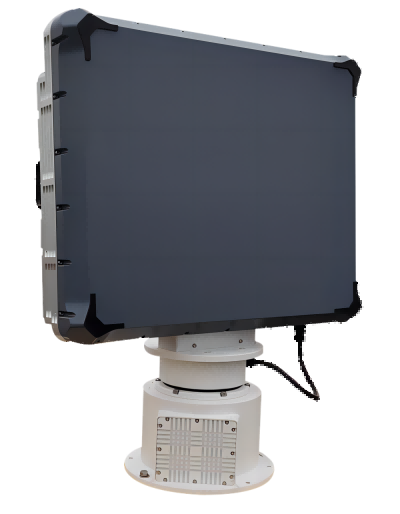

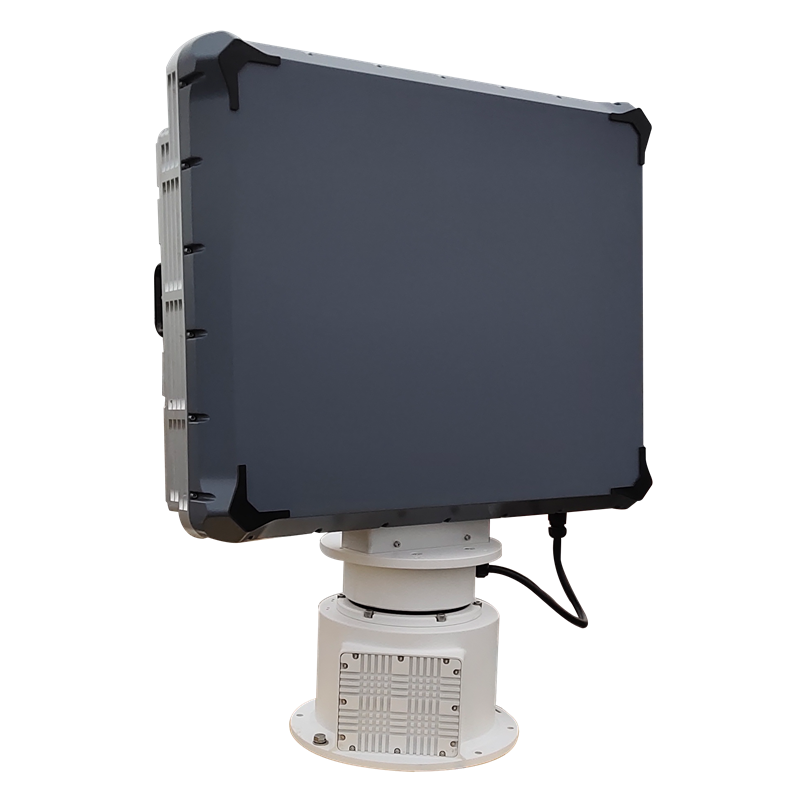

ASR 216SR-1S5K-3D, working in S-band, adopting the digital technology of active phased array system, through the modular, fine design, the integrated use of adaptive moving target detection, digital T/R (transmit/receive), DBF (digital beamforming), analog to digital integration design, with a stable detection performance, high precision, and low cost, is an excellent ground moving target detection radar.
It can accurately give the target‘s azimuth, distance, altitude, speed and other track information.
It is used for detection, warning and target indication of micro / small civil UAV in key areas such as prison, exhibition and military base.
Features
•High data rate and high positioning accuracy
•Multi-Input Multi-Output (MIMO) system
•All-weather adaptability
Application
Airports, border areas and other, key areas security surveillance
Specification
|
Item |
Specification |
|
|
Working system/mode |
Phased array system (Azimuth phase sweep) |
|
|
Working frequency |
S band（2.9GHz; 5 operating frequency points） |
|
|
Detection range |
5 km (DJI Phantom 3/4 RCS≈0.01㎡) |
|
|
Minimum detection range |
≤100m |
|
|
Azimuth coverage |
0°～ 360° |
|
|
Elevation coverage |
0°～ 40° |
|
|
Distance accuracy |
≤10m |
|
|
Azimuth accuracy |
≤1.0° |
|
|
Elevation accuracy |
≤1.0° |
|
|
Data rate |
Searching：≤2s |
|
|
Power Consumption |
≤250W |
|
|
Power supply |
AC220V-AC240V |
|
|
Net weight |
≤60kg (with PTZ) |
|
|
Interface |
RJ45， UDP protocol) |
|
|
Dimension |
782mm X 695mm X T200 mm (Antenna) 365 mm X 365mm X H 312 mm (Turntable) |
|
|
Working temperature & Storage Temperature |
-40 ℃ ~ +55 ℃ -40 ℃ ~ +65 ℃ |
|
|
Environment |
Rain-proof; Dust Prevention; Sand-prevention; Moisture- proof, Mould-proof and Salt-proof |
|
