Air Surveillance Radar

ASR 223-1X2K-3D / X band

Introduction

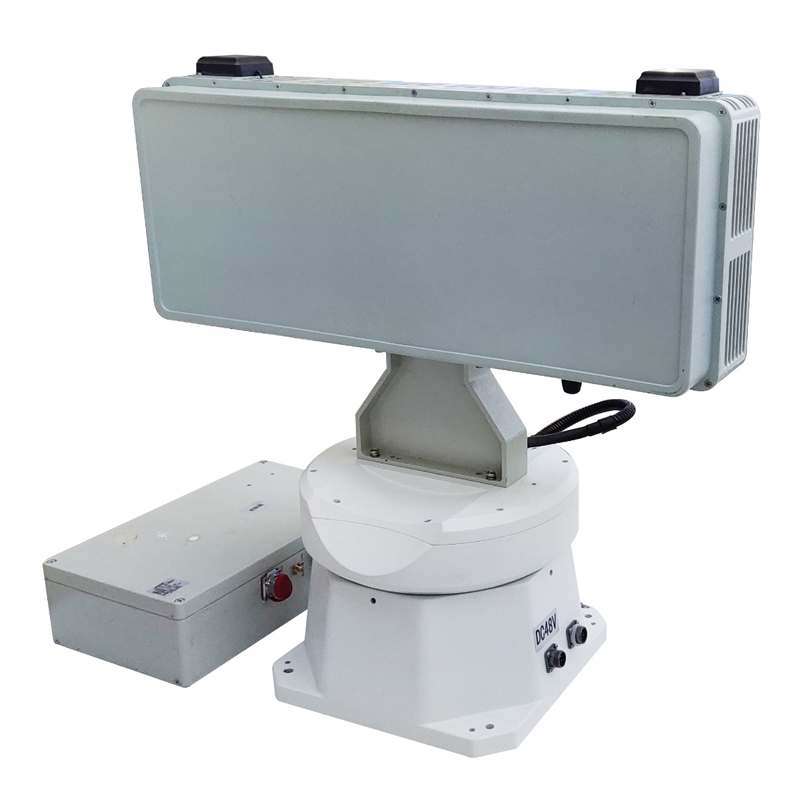

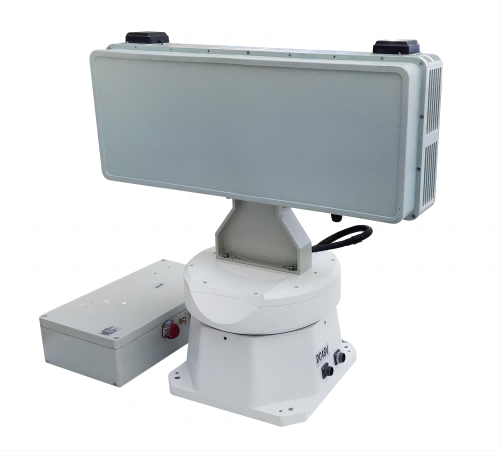

ASR 223-1X2K-3D security surveillance radar is mainly composed of radar array high-speed turntable and distribution control box, which is used for detecting low altitude low small slow targets and pedestrians and vehicles. It can be used for warning and target indication, and can give the track information of targets in real time and accurately.

Application

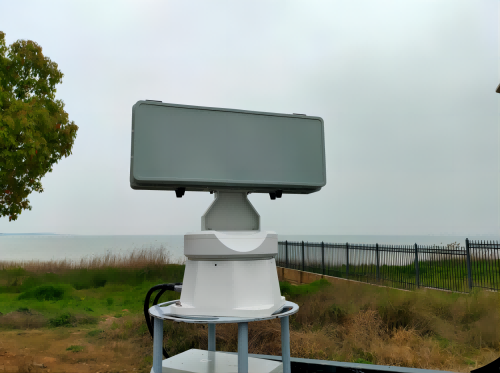

Airports, military bases, border areas and other key areas security protection;

Features

· The radar adopts automatic detection and tracking working mode.

· The software of the terminal display control platform realizes the target positioning and trajectory display functions on the map, and can display the target range, azimuth, altitude and speed information in a list;

· With the function of setting multi-level alarm area, the alarm area can be set arbitrarily, and different grades of areas can be distinguished by different colors;

· With intrusion alarm function, different alarm areas can be used in different ways;

· It has the function of setting radar basic parameters, which can adjust the parameters of working mode, detection threshold, transmitting switch and array orientation;

· With function of track recording and playback of the target；

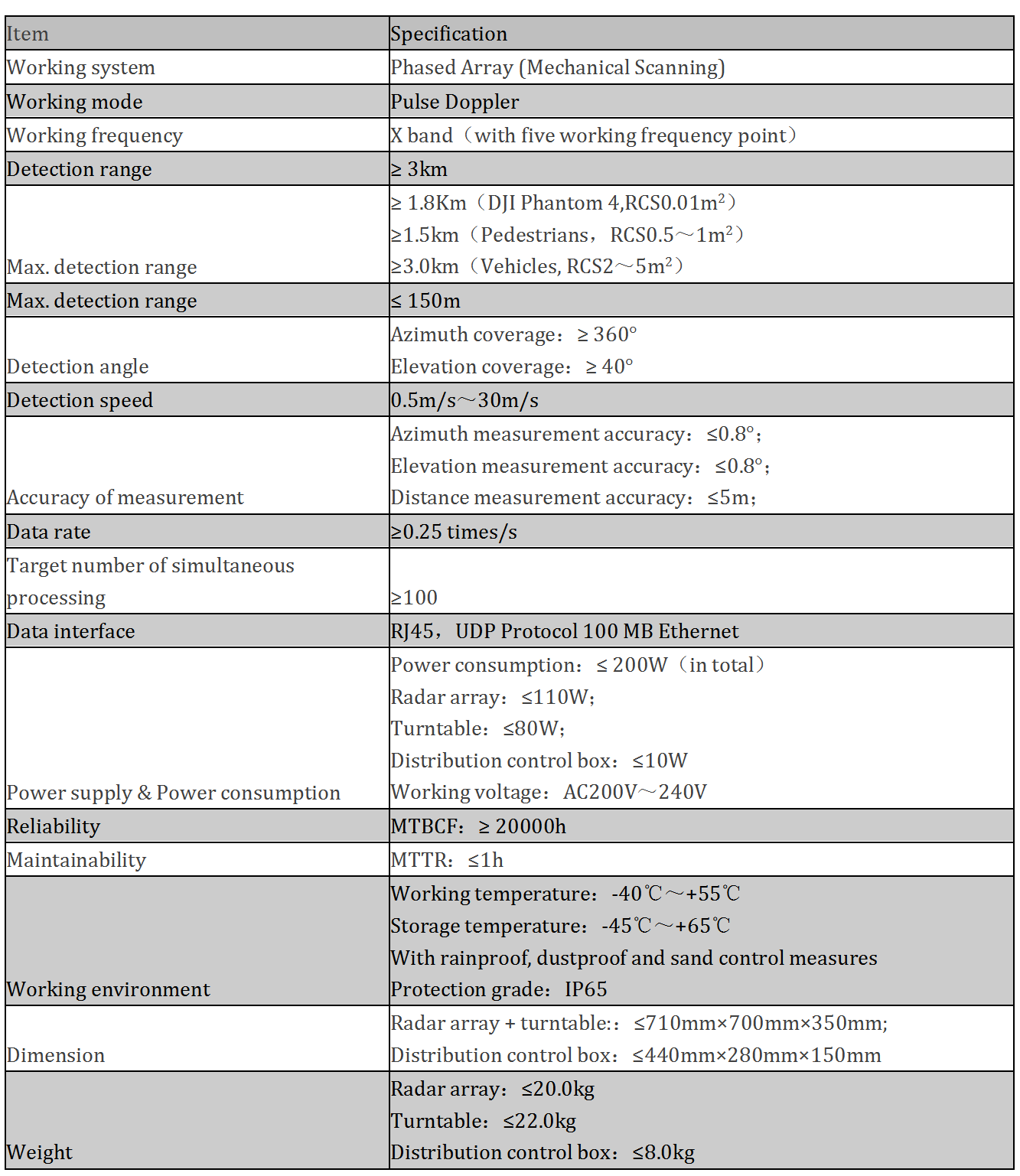

Parameters
